72mm/S Automatic Core Blowing Machine With Hydraulic Movements

  • 1
  • 2
  • 3

Brand Name : DZ

Model Number : HZ-360

Certification : CE ISO

Place of Origin : China

MOQ : 1set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30sets/per month

Delivery Time : 20days

Packaging Details : wood

Condition : New

After-sales service provided : Engineers available to service machinery overseas,Overseas service center available

Product name : Sand core shooting machine

Weight : 2000kg

Voltage : 220v/380v/415v

Warranty : 1 Year

Contact Now

Automatic Core Blowing Machine With Hydraulic Movements

Automatic Core Shooters With Automatic Sand Feeder

Feature

  • Heavy steel structure

  • Chrome plated rounded protectedguides, with bronze sliding bushingsHydraulic automatic cores unloadingon a rubber conveyor belt by corecore box tilting

  • Electric heating with independenttemperature control for each halfcore box (13,5+13,5 kW)

  • Water cooled blowing headBlowing head plate withmicrometric regulation

  • Vibrator on blowing cylinderElectric power and control panelEjection bench sliding on brassesPLC Siemens

  • Automatic drawer for lower metalcore with thermoregulation

  • Static limit switches

  • Hydraulic valves and cylinders

II:Main Technical Specifications
1BASIC EQUIPMENTSpecifications
 Max. Sand Core Weight9kg
 Max. Cor Box size(L*W*H)(450*330*220)mm
 Heating Plate(L*W)(400*300)mm
 Heating Power9.6kw
 Clamping stroke of the shooting head≤30mm
 Die-opening Stroke≤300mm
 Max.Core Pulling Stroke150mm
 Conveyor Belt(L*W*H)(2200*450*100)mm
 Machine Power2°~4°
 Conveyor Speed72mm/s
 Machine Dimension(L*W*H)(3500*1480*3400)mm
 Lifting Speed(single cycle)35s
 Lifting Capacity(Single cycle)5~10kg
 Machine weight2000kg

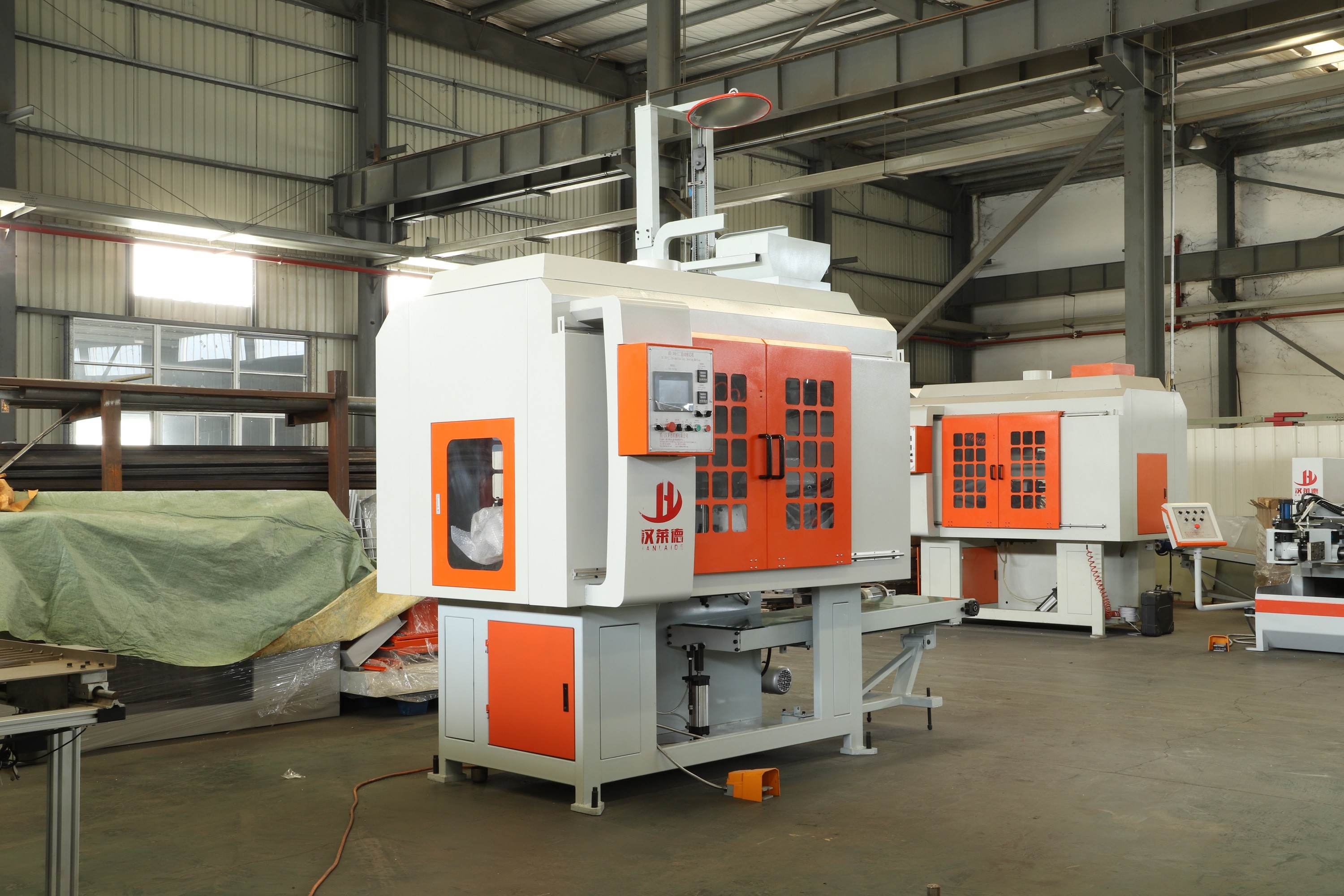

72mm/S Automatic Core Blowing Machine With Hydraulic Movements

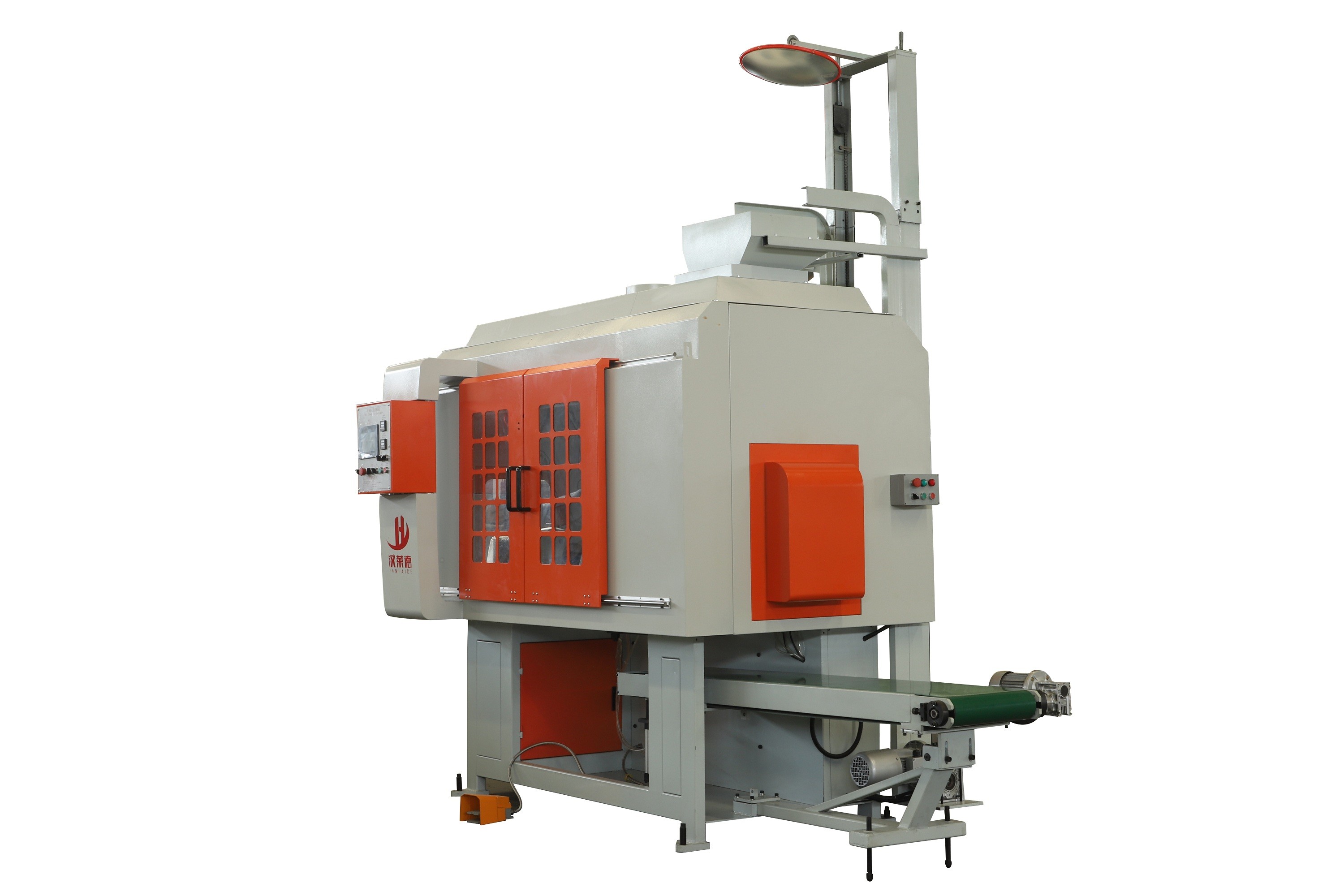

72mm/S Automatic Core Blowing Machine With Hydraulic Movements
72mm/S Automatic Core Blowing Machine With Hydraulic Movements
