Bathroom Industry CNC Buffing Machine Automatic Metal Polishing For Brass Tube

Brand Name : DZ

Model Number : NC-62

Certification : CE ISO

Place of Origin : Chian

MOQ : 1set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30sets/per month

Delivery Time : 20days

Packaging Details : wood

Voltage : 380V/50Hz (others are available)

Condition : New

Weight : 6000Kg

After-sales service provided : Engineers available to service machinery overseas,Video technical support,Online support,Field installation,commissioning and training

Application : Bathroom industry

Cnc or not : CNC

Warranty : 1 Year

Control system : PLC

Motor : servo motor

Function : polish surface,Polishing and Burishing,polishing machine

Contact Now

Bathroom Industry CNC Buffing Machine , Automatic Metal Polishing Machine For Brass Tube

Automatic polishing machine features

1. This equipment is a multi-station synchronous processing CNC polishing machine, which is suitable for automatic polishing of various irregular complex products, such as faucets, locks, chair five-pointed stars, dinner plates, home appliances and so on.

2, can choose to select 1-6 workpieces synchronous processing, the whole can be precision polished.

3, the fixture and polishing cloth wheel are quickly replaced, greatly reducing replacement time and improving efficiency.

CHARACTERISTIC

1.The automatic polishing machine is an exclusive polishing system consisting 4 manipulators with of 6 Axis rotary system; Multiple stations simultaneous operation ensures high flexibility and high product efficiency.

2.The control system adopts PROMAX motion control technology from Italy, with stable performance and high control accuracy.

3.Programming method: teaching programming ,with portable handed device, contains manually mode to simulate the workmanship polishing and record the track; automatically operating model is available with pre-set parameters program.

4.Polishing pressure and wear compensation control performance: When the polishing cloth wheel is worn out, the system can detect that the torque has become smaller and automatically the compensation in all directions.

5.Linear speed compensation: When the outer diameter of the cloth wheel is reduced, the system automatically increases the speed and compensation;

6.Program setting of add polishing wax:free setting of wax spraying time and frequency according to the characteristics of product.choice of slid compound or liquid compound.

7.Fully digital control, it can store 50 programs. Programs can be saved and recalled at any time.

8. CN/EN language display on Touch Panel. It is to set all parameters for an easy operation; fault codes display and alarm pages for quick troubles shooting and repair.

TECHNICAL PARAMETERS

Code Item Specifications-2station

Specifications-4station

1 Dimensions (L*W*H) 3000*3100*2900mm 4400*3400*2900
2 Machine Power 16.5KW 35KW
3 Rated Voltage 380V 380V
4 Max. Diameter of polishing wheel 600mm

600mm

5 Min. Diameter of polishing wheel 400mm

400mm

6 X-Axis travel (mm) 1200 1200
7 Y-Axis travel (mm) 1100 1100
8 Z-Axis travel (mm) 700 700
9 U-Axis travel (mm) ±90° ±90°
10 V-Axis travel (mm) ±360° ±360°
11 W-Axis travel (mm) ±360° ±360°

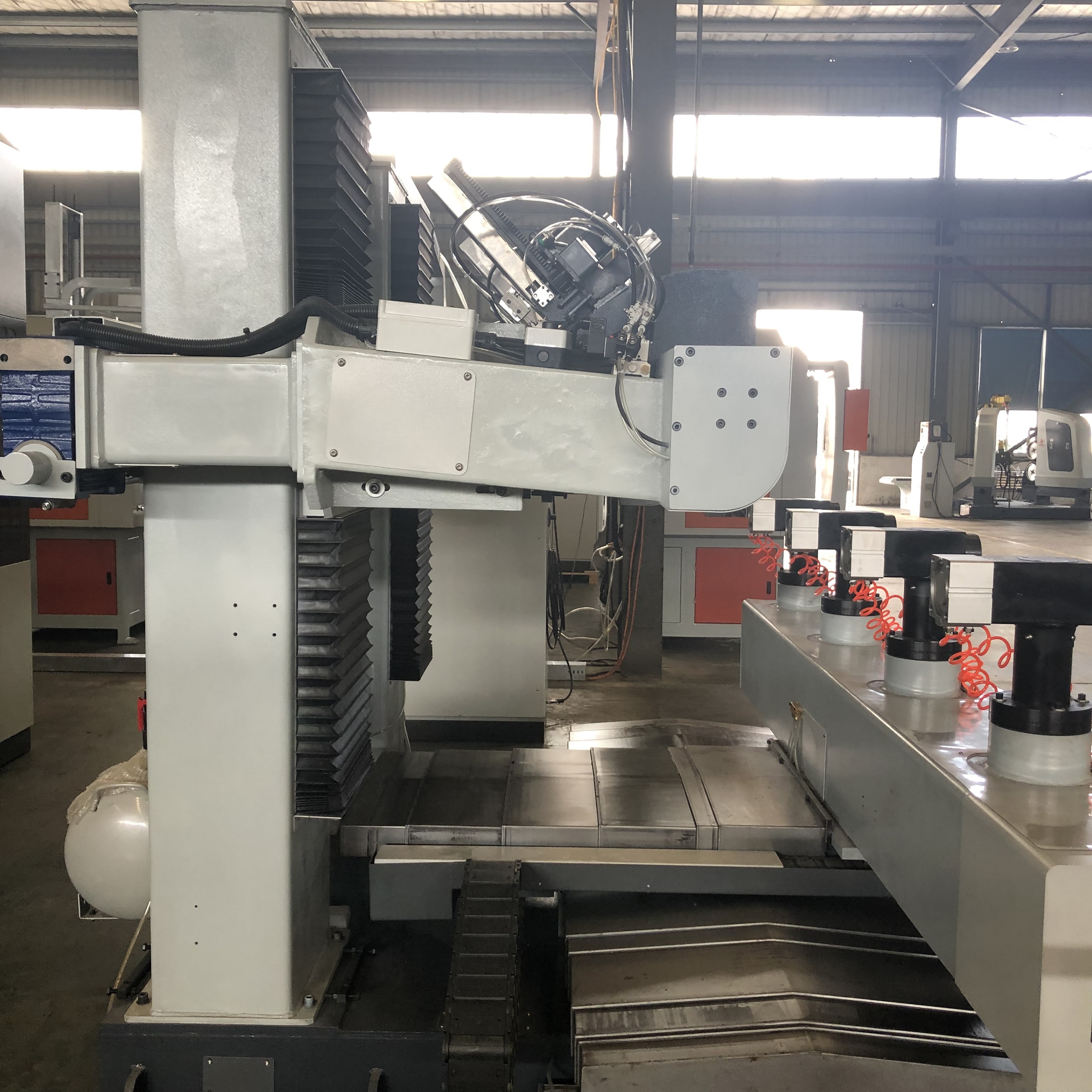

Bathroom Industry CNC Buffing Machine Automatic Metal Polishing For Brass Tube

Click the link to view video:

https://www.youtube.com/watch?v=2aHETEO5BG8&list=UUMEJdKjNOuRhrF8Kyh8fX_A&index=20
