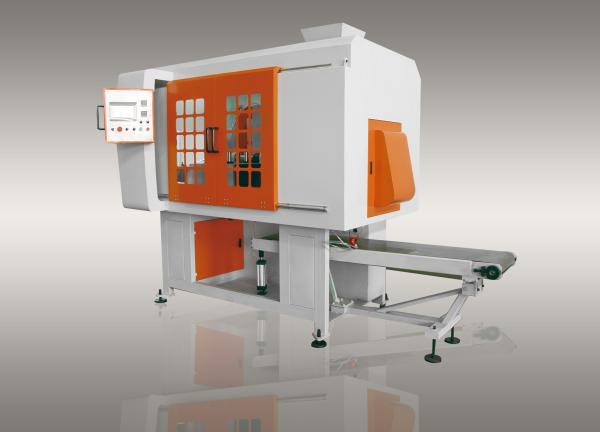

Accuracy 99.99% Pneumatic Core Shooter Machine 13.2KW For Brass Faucet

Product Categories

Xiamen DingZhu Intelligent Equipment Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : DZ

Certification : ISO,CE

Place of Origin : China

MOQ : 1set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20sets/per month

Delivery Time : 20days

Packaging Details : wooden case packing

Condition : New

After-sales service provided : Engineers available to service machinery overseas,Overseas service center available

Weight : 2000kg

Color : Customized

Voltage : 220V / 380V / 415V

Function : Making sand core

Warranty : 1 Year

Sorting accuracy : ≥99.99%

Contact Now

#	Item	Specification
1	Max. Weight of Sand Core	8kg
2	Max. Size of Core Box ( L x W x H)	(450330220)mm
3	Heating Plate ( L x W)	(400*300)mm
4	Heating Power	9.6kw
5	Downward Stroke of Ejection Head	≤30mm
6	Stroke of Mold Opening	≤300mm
7	Max. Stroke of Core Remove	150mm
8	Conveyor ( L x W x H)	(2200450100)mm
9	Total Power	13.2kw
10	Rising Angle of Conveyor	2°~4°
11	Speed of Transportation	72mm/s
12	Machine Size ( L x W x H)	(350014803400)mm
13	Speed of Lift (Single Time)	35s
14	Weight of Lift ( Single Time)	10kg
15	Total Weight	2000kg
16	Hydraulic pressure	50Kg/cm²
